Hospital Clinic Polymerase Chain Reaction QPCR Quantitative Gene
DNA Amplifier

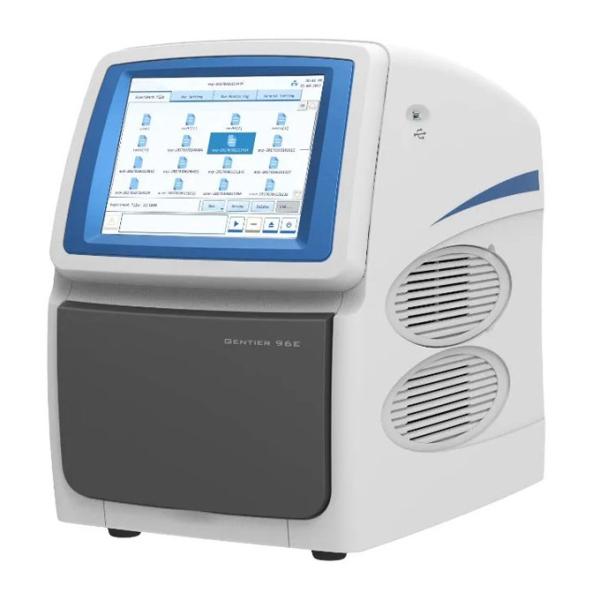

The Gentier96 Series Quick Real-time PCR system is intended for
performing rapid accurate polymerase chain reaction (PCR),
meanwhile real-time measuring the nucleic acid signals from
DNA-binding fluorescent dyes or labeled probes and converts them to
comparative quantitative readouts of DNA or reverse transcribed
RNA.
Features:
1. DESIGN FOR FLEXIBLE USE (1)Standard with 10.4' LCD touch screen,
functions quickly, accessible through simple, one-touch commands.
(2)Wizard operation to lock and unlock the transport locker.
(3)Message alarm indicate the status of the machine. (4)USB port
update software and firmware. (5)Unique power-off protection
function can save all the setted configurations for sudden power
outages, and allow the experiment continues when power supply is
restored.
2. FAST AND UNIFORM HEATING SYSTEM
(1)Concealed lid with constant temperature and isopiestic pressure.
(2)Electrical controlled elevating & automatic locked platform.
(3)Thermo block is based on improved heat pipe technology, leading
to extraordinary lintra-well temperature homogeneity and maximized
inter-well, inter-cycle reproducibility.
(4)Highly efficient PID&DSP control algorithm ensures faster
respond and stronger interference resistance, fast and uniform
heating and heat sinking.
3. System can be installed in three distinct configurationsf
providing unmatched flexibility and convenience.
(1)Co-located configuration (PC control).
(2)Standalone (PC-free) configuration (Data can be export by USB
and analysis on PC).
(3)Networked configuration (PC software automatically detect all
systems in LAN and allow to remote monitoring one of experimental
progress and downloading of the completed run file to the PC at
your desk,one PC can max control 10 instruments).
Technical datas:
Model | Gentier 96E | Gentier 96R |
Thermal Block |
Sample capacity(wells) | 96 |
Reaction Volume | 0-100 μL |
Consumables | 0.2ml 96-well Plates(unskirt);
0.2ml 8-strip tubes ,0.2ml PCR single tube
(Optical flat cap,clear,frosted,white tube) |
Temperature range | 0°C-100°C |
Heating/cooling method | Peltier |
Max heating rate | 6.1°C/sec |
Average heating rate | 4.5°C/sec |
Max cooling rate | 5.0°C/sec |
Average cooling rate | 2.8°C/sec |
Temperature accuracy | ±0.1℃ |
Temperature uniformity | ±0.1℃ |
Gradient Range | 1°C-40°C | 1°C-40°C |
Gradient block | 12 row | 12 row |
Special temperature protocol | Gradient PCR,
Long PCR,
Touch Down PCR | Gradient PCR,
Long PCR,
Touch Down PCR |
Heat Lid |
Temperature range | Room Temperature–110°C |
Optical System |
Excitation Source | 6 LEDs | 4LEDs |
Detector | Photodiode |
Detection Position | Excitation and scan at top |
Detection method | 6 channels scanning at the same time, no edge effect. |
Detection time | 7 seconds for 96 wells for all channels |
Range of
excitation/emission wavelengths
(nm) | 1.465 /510 (FAM,SYBR Green I,SYTO9,EvaGreen,LC Green)
2.527/ 563(HEX,VIC,TET,JOE)
3.580 /616 (ROX,Texas Red)
4.632/ 664( Cy5)
5.680 /730 (Alexa Fluor680)
6.465 /616 (FRET) | 1.465 /510 (FAM,SYBR Green I,SYTO9,EvaGreen, LC Green)
2.527/ 563 (HEX,VIC,TET,JOE)
3.580 /616 (ROX,Texas Red)
4.632/ 664( Cy5) |
Probe | Taqman Probe,
Molecular beacons probe,
Scorpion probe ,
FRET | Taqman Probe,
Molecular beacons probe,
Scorpion probe |
Multiplexing | Up to 6 targets | Up to 4 targets |
Fluorescence Linearity | r≥0.990 |
Fluorescence Dynamic Range | Adjustable |
Performance |
Sample Linearity | /r/≥0.999 |
Sample repeatability | Ct value CV≤0.5% |
Sample Dynamic Range | 1-1010 copies |
Software Functions |
Data Analysis modes | Qualitative analysis,Absolute quantification, Relative
quantification,Genotyping analysis,Endpoint analysis,
Melt curve analysis, High Resolution Melting |
Control modes | 1.10.4' touch screen
2. PC direct control
3. WLAN control(One PC can control max 10 units, and device can be
controlled by any PC in the WLAN) |
Sample Drawer | Touch screen commend |
Data Stroage | Upload and download through USB disk,1000 results can be stored in
machine |
Power failure protection | Automatically start running experiments after power supply, no need
wait PC software |
Customize Report | Templates reserved ,report can customized |
Administration Management | Administrator can set functions limits for users |
Transport Locker | Automatically detect transport locker |
Fault Management | Fault report and analysis, solution instruction |
LIS connection | CSV,Excel,TXT format data output,open port for LIS connection |
Others |
PC operating system | Win 7, Win 10 |
Communication Port | 1 ethernet and 3 USB |
Footprint (WxDxH) | 355mm X 480mm X 485mm |
Weight | 30kg |
Power usage | AC 100 to 125 V / 200 to 240 V (50/60 Hz). |
power consumption | 900VA |
Work environment | Temperature:10°C~30°C Humidity:20%~85% |
Notes:
Gentier 96E Real-time PCR System:
Currently channels are same with Bio-rad CFX96,Qiagen RotorGene Q
Can change FRET to TAMRA/CY3 in future, it can be the same with all
ABI qPCR, Agilent Mx3005P
Gentier 96R Real-time PCR System:
Channels are same with Roche LightCycler 96, Agilent Mx3000P
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least
1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will
prepare the machines and goods. Usually could ready within 10
working day, when dispatch, will inform client and send the
documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and
video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside
the machine?
Bonnin’s engineer could provide the solutions by email and video.
In warranty period, we can send spare parts for free and life-time
technical support for spare supply.
