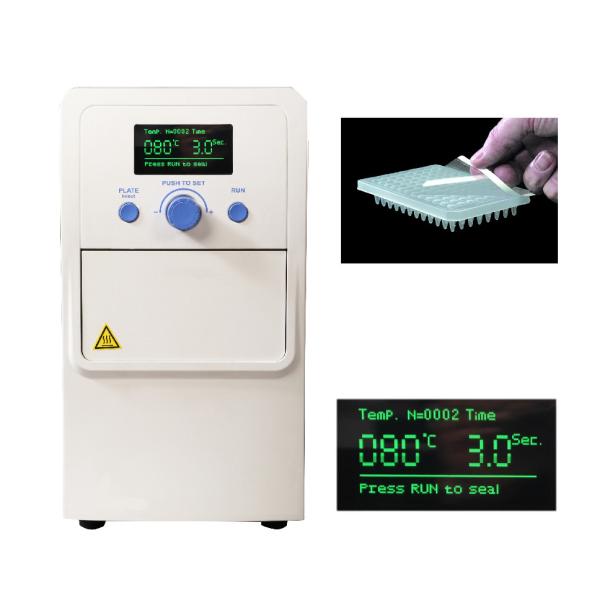

PS-2 Semi-automatic 96 Deep Well Plate Film Sealer Microplate Heat
Sealer
The PS-2 Semi-automatic microplate heat sealer has a compact design
and is easy to install. It can prevent sample loss and space
cross-contamination caused by liquid evaporation and leakage of
various microplates during the detection process by heat sealing
various special heat sealing films. Rapid heating, real-time
display of sealing temperature, automatic detection of microplate
height.
Features:
1. Rapid heating (up to 170°C within 300 seconds), precise
temperature control.
2. Adjustable sealing plate temperature: 80~200℃, real-time
temperature display.
3. Simple operation, suitable for a variety of microplates.
4. Temperature, time and pressure are adjustable to ensure
stability.
5. Full viewing angle full brightness OLED display, bright display
in dark environment.
6. Small footprint: only 370mm deep x 178mm wide.
7. Power supply: AC120V or AC220V.
Safety:
1. The smart motor controls the access door. If the hand or other
objects obstruct the closing access door, the smart motor will
reverse to protect the user and the instrument.
2. With a special structure with smart design, the access door can
be separated from the instrument, so as to clean and maintain the
heating plate
Operation and control:
The Microplate Heat Sealer can be set up for all types of
microplates and sealing materials. The sealing time and temperature
can be set by the knob:
1. Plate time (in increments of 0.1s) and sealing plate temperature
(in increments of 1.0°C).
2. The sealing plate pressure can be adjusted to ensure the
stability of the sealing plate.
3. Automatic countdown function.
Energy saving:
1. Auto standby function saves energy. When there is no operation
for 60 minutes, the instrument enters standby mode, and the
temperature of the instrument is lowered to 60°C, saving energy.
2. When there is no operation within 120 minutes, the instrument
will enter the "deep sleep" mode, turn off the display screen, cut
off the power supply of the heating body, and only a weak current
will be supplied to the core components of the control board. Press
any key again, and the instrument will return to the working state.
SPECIFICATIONS
| Model | PS-2 |
| Display interface | OLED display, high brightness and no dead spots |
| Heat sealing temperature | 80~200℃ (increase of 1.0℃) |
| Temperature accuracy | ±1.0℃ |
| Temperature consistency | ±1.0℃ |
| Heat sealing time | 0.5~10s (increment 0.1s) |
| Sealing plate height | 9 to 48mm, automatic recognition, no adjustment required |
| Maximum input power | 300W |
| Dimensions (D×W×H) mm | 370×178×330mm |
| Weight | 9.6kg |
| Adapter plate material | PP (polypropylene)/PS (polypropylene)/PE (polyethylene) |
| Adapter board type | Standard assay plates (ELISA plate, cell culture plate) / PCR plate
(full skirt, half skirt and no skirt) / deep well storage plate |
| Suitable sealing film | Foil - polypropylene material / transparent polyester fiber -
polypropylene material / transparent polymer material / thin layer
transparent polymer material / foil layer material |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least
1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will
prepare the machines and goods. Usually could ready within 10
working day, when dispatch, will inform client and send the
documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and
video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside
the machine?
Bonnin’s engineer could provide the solutions by email and video.
In warranty period, we can send spare parts for free and life-time
technical support for spare supply.
