Air Filter Bubble Point Testing Filter Integrity Testing Equipment
for Sale

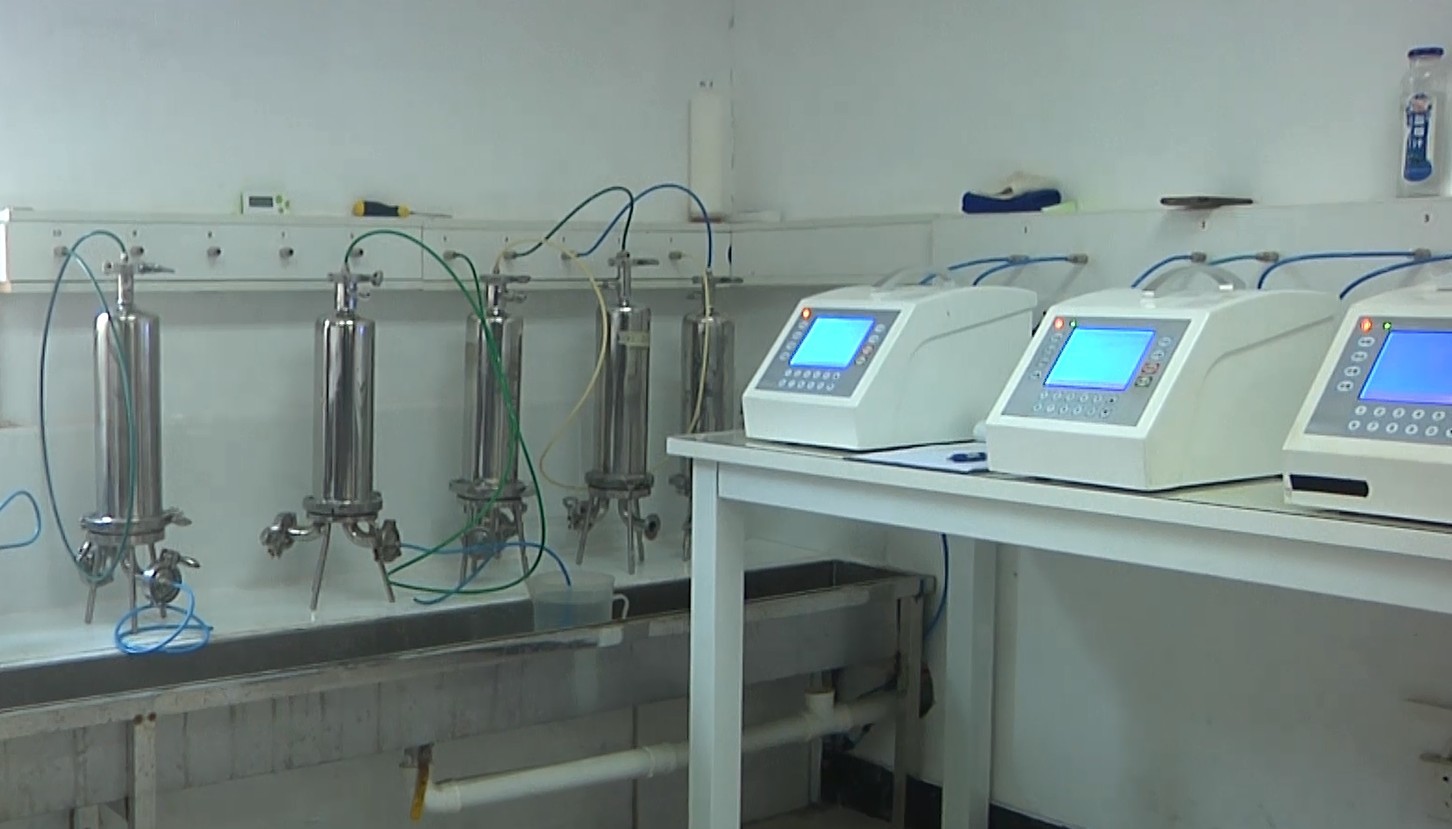

BNT-V4.0 automatic filter integrity tester is the filter material
and filter system integrity test of special equipment, it can be
bubble point and diffusion flow (forward flow) method, water
intrusion test method to detect filtering accuracy and completeness
of filter and filtration systems. Test methods meet FDA, National
Pharmacopoeia and the GMP standards for sterile filter validation
requirements.
Application Range:
Disc Membrane:Φ25mm-Φ300mm;
Standard Cartridge:2.5″- 40″
Capsule & Mini Catridge
Air filter test :2.5″- 40″
Features:
- 5.7 "digital LCD display with backlight, clear display;
- Pure Chinese operating environment, in line with people's habits;
- Real-time display of test data and curves, monitor the entire
process of testing;
- Dual-core computing, it covers all the features of similar foreign
instrument.
- With a better user management features, users may be required to
change the password needed.
- An increase of the test filter automatic protection against
over-voltage test because of damage caused to the filter.
- A setting item automatically print function, allowing users to
operate more simple and convenient.
- The hydrophobic filter designed specifically for the "Water
immersion" test, solve the hydrophobic filter can only be used to
test the integrity of the organic solvent infiltration
shortcomings, to fill a gap.
- With a more sophisticated vitality, better algorithms, the
instrument can achieve the detection of flat membrane filter
diffusion flow, which is important to determine the integrity and
properties of the film.
Technical Parameters:
| Power requirements | 170-240V AC, 50/60Hz；110W |
| Maximum operating pressure | 9999 mbar |
| Minimum intake air pressure | 3000 mbar |
| Overall dimensions | 240(W) x 380(D) x 280(H) |
| Test Range | maximum test pressure: 500-6900mbar |
| Test Accuracy | Net volume test: ± 4%; bubble point: ± 50mbar; diffusion flow: ±
4%; water immersion: ± 0.1ml / min |
| Operating conditions | Ambient temperature: + 5 ℃ ~ + 35 ℃; Relative humidity: 10-80% |
| Test Processed | Net volume test: 5 min ± 2min; diffusion flow test: 8 min ± 2min; Simple bubble point test: 10 min ± 2min; enhanced bubble point
test: 20 min ± 2min; Water immersion test: the setting of test time + 5min ± 2min; |
| Printing function | Wide line printing, output test parameters, test results, automatic
print function |
| Test recording function | 500 groups of test results (including test curve), can be increased
to 1000 set of test results according to user needs |
| Display screen | 5.7" TFT；monochrome |
| Serial port connection mode | RS232； |
| Language | English |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least
1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will
prepare the machines and goods. Usually could ready within 10
working day, when dispatch, will inform client and send the
documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and
video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside
the machine?
Bonnin’s engineer could provide the solutions by email and video.
In warranty period, we can send spare parts for free and life-time
technical support for spare supply.
