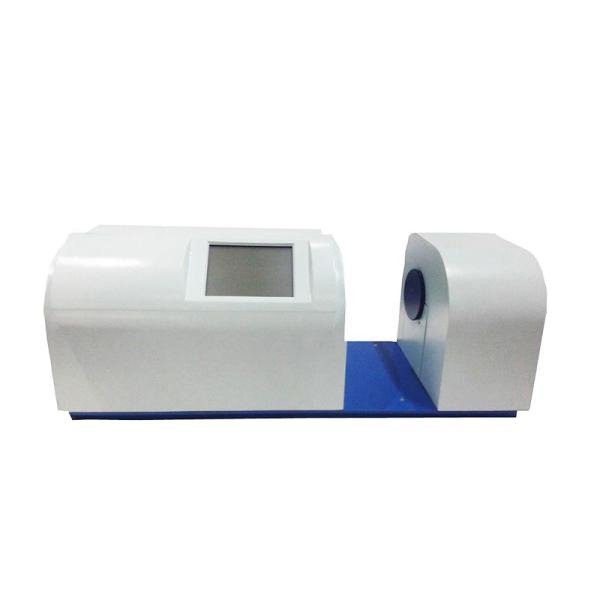

SGW-810 Digital Haze Meter Tester SGW-820 Digital Plastic Film
Transmittance Haze Meter
BONNIN SGW-810 Digital Haze Meter Tester SGW-820 Digital Plastic
Film Transmittance Haze Meter
The Digital Haze Tester is based on the National Standard
GB/T2410-2008 "Transparency and Haze Test Methods for Transparent
Plastics" of the People's Republic of China and the Standard Test
Method for Haze and ASTM D1003-61 (1997). "Luminous Transmittance
of Transparent Plastice" is a computerized automatic measuring
instrument designed to measure the transmittance and transmission
haze of all transparent and translucent parallel planes (plastic
plates, sheets, plastic films, flat glass). It has a wide range of
applications in defense scientific research and industrial and
agricultural production.
It meet the test standards such as GB/T2410-2008, ASTM D 1003-61
(1997), JIS K7105-81 and are conducive to technical exchanges at
home and abroad.
Instrument features:
Parallel lighting, hemispherical scattering, and integrating sphere
photoelectric receiving method.
Using microcomputer automatic operating system and data processing
system, no knob operation, easy to use. Up to 2000 sets of
measurement result data can be saved, U disk storage function and
standard USB interface to establish communication with PC.
The transmittance results are directly displayed to 0.01% and the
haze is displayed to 0.01%.
Due to the use of the modulator, the instrument is not affected by
the ambient light, and it is not necessary to use a dark room,
which ensures the accuracy of large sample measurement.
With thin-film magnetic fixtures and liquid sample cups, it brings
great convenience to users.
A piece of haze is attached randomly, which makes it easy to check
the function of the instrument at any time. (Note: The haze cannot
be rubbed, it can be blown with a blow ball).
Technical Parameters:
| Instrument model | SGW-810 |
| Instrument light source | C light source(6447K) |
| Measuring range | Transmittance 0%-100.00% |
| Haze 0%-100.00% (0%-30.00% Absolute measurement) |
| (30.01%-100% Relative measurement) |
| Minimum indication | Transmittance 0.01%, Haze 0.01% |
| Accuracy | Transmittance≤1% |
| When haze<0.5%, ≤±0.1%; when haze>0.5%, ≤±0.3% |
| Repeatability | Transmittance≤0.5% |
| When haze≤0.5%, 0.05%; When haze>0.5%, 0.1% |
| Sample window | Into window Φ25mm out window Φ21mm |
| Display method | 7 inch color touch screen |
| Communication Interface | USB/Udisk |
| Data storage | 1000 groups |
| power supply | 220V±22V,50Hz±1 Hz |
| Instrument size | 74omm ×230mm× 300mm |
| Instrument net weight | 21kg |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least
1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will
prepare the machines and goods. Usually could ready within 10
working day, when dispatch, will inform client and send the
documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and
video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside
the machine?
Bonnin’s engineer could provide the solutions by email and video.
In warranty period, we can send spare parts for free and life-time
technical support for spare supply.
