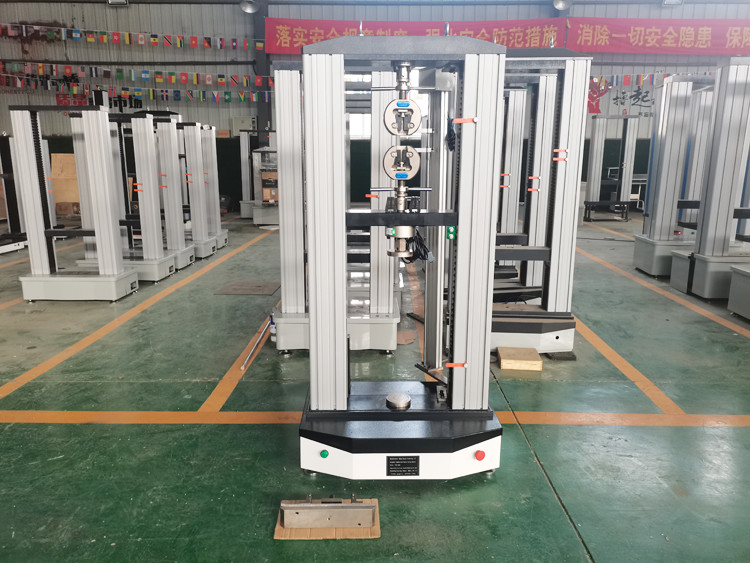

UTM computer control universal testing machine is used in tensile
strength, compression, and bending test applications for metallic,
non-metallic, and composite materials. The PC controlling system is
able to realize the close-loop control of the parameters such as
loading force, specimen deformation, and crosshead stroke etc. The
system realizes the screen display, online diagram drawing, testing
curve changing, pile curve collation and auto analysis of test
results, creation of test report. Especially, the application of
the control mode can be manual control or computer programming
control, which makes the cyclic tests become available.
2. Test capability of machine and relevant Standard:
ISO 6892-1:2016:Metallic materials — Tensile testing as universal
test
ASTM E8 / E8M - 16a Standard Test Methods for Tension Testing of
Metallic Materials2.3 ISO 75001 Part 1: Tension/compression testing machines --
Calibration and verification of the force-measuring system
ASTM E4 - 16 Standard Practices for Force Verification of Testing
Machines
3. Main Technical Parameters:
| Model | UTM-20KN |
| Max. load force | 20KN |
| Max. tensile test space | 700mm |
| Max. Compression Test Space | 700mm |
| Test width | 400mm |
| Crossbeam travel speed | 0.01-500mm/min |
| Testing Specification | UTM-20KN |
| Max.load | 20kN |
| Load accuracy | 0.5 class |
| Load range | 0.4%-100%FS |
| Load resolution | 1/300000 |
| Deformation Measurement Range | 0.2%～100% |
| Deformation accuracy | ≤±0.5% |
| Control Specification | UTM-20KN |
| Displacement resolution | 0.01mm |
| Stress rate | 0.005％～5％FS/s |
| Stress rate accuracy range | When rate < 0.05% FS/s, the precision± 1% When rate ≥ 0.005%FS/s, the precision ±0.5％ |
| Deformation rate | 0.005％～5％FS/s |
| Deformation rate accuracy range | When rate < 0.05% FS/s, the precision± 1% When rate ≥ 0.005%FS/s, the precision ±0.5％ |
| Cross beam traveling speed | 0.01-500mm/min |
| Displacement control accuracy | ±0.2％ |
| Constant load, deformation and displacement control | 0.5％～100％FS |
| Constant load, deformation and displacement control accuracy | Preset value≥10%FN, within the ±0.5% of preset value; Preset value<10%FN, within the ±1% of preset value |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least
1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will
prepare the machines and goods. Usually could ready within 10
working day, when dispatch, will inform client and send the
documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and
video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside
the machine?
Bonnin’s engineer could provide the solutions by email and video.
In warranty period, we can send spare parts for free and life-time
technical support for spare supply.
