10M2 CIP SIP Vacuum Freeze Drying Machine Pharma Drug Vacuum Freeze
Dryer
Applications
GZLY medical type vacuum freeze dryer series is used for the
pharmaceutical factories.
This model is not only suitable for the freeze drying of bulk
(liquid, pasty, solid) conventional materials, but also suitable
for the drying of the vials materials. When the materials are ready
for freeze-drying, they are put into in the vial, then begin freeze
drying before the vial's lid unsealed. The capping device compacts
the vials' lids after freeze drying to prevent secondary pollution,
re-adsorb water, and facilitate long-term storage.
GZLY medical type freeze dryer series are widely used in medical
field, such as blood products, vaccines, biological products, and
chemical medicines, especially western medicine field. This series
models are used in many large-scale pharmaceutical factories. In
terms of injections, drug quality can be improved and storage time
can be delayed through freeze drying.
Main features
● The shelves are made with unique patented technology, high
pressure resistance, high flatness, and good temperature
uniformity.
● The cooling speed can be controlled throught The freeze-drying
curve optimization control technology in the pre-frozen phase, and
at the same time, the sample heating speed and the current vacuum
value also can be controlled in the sublimation and analytical
drying stages.
● The patented gas diversion design and control technology ,strong
ice collecting capacity and high drying efficiency.
● The unique dual-channel sealing technology of the mobile + fixed
dual-channel door seals sterilizes the stationary silicone rubber
while steam sterilizing.
● Vacuum adjustment during drying operation to avoid foaming and
blowing of special materials and improve drying efficiency.
● Industrial-grade embedded touch screen + dedicated SH-HPSC-IV
modular controller, stable and reliable system, high control
accuracy.
● The professionally designed LYO-CONTROL control system can save
multiple sets of process . At the same time, the process can be
adjusted in real time during the drying process to improve the
process optimization rate.
● Flexible manual + automatic control mode, the manual for groping
process, and the automatic for batch production.
● The powerful LYO-MEGA host computer control system can record and
save the operating data, curves and alarm records for ten years to
improve the traceability of products; at the same time, it is
convenient for observation, operation and fault diagnosis.
● User grades and passwords can be set, and operations can be
decentralized to meet GMP-related requirements.
● The non-stardarded can be customized as requested.
Main technical datas:
Models
parameters | Unit | GZLY-1 | GZLY-2 | GZLY-3 | GZLY-5 | GZLY-10 |
| Freeze drying area | m2 | 1.15 | 2.16 | 3.24 | 5.2 | 10.5 |
Liquid material
(thickness 10mm) | L | 10 | 20 | 30 | 50 | 100 |
| Shelf number | layer | 4+1 | 4+1 | 6+1 | 7+1 | 7+1 |
| Shelf dimensions | mm | 600*480 | 600*900 | 600*900 | 750*1000 | 990*1520 |
| Shelf spacing | mm | 80 | 80 | 80 | 80 | 80 |
| Temp. range | ℃ | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 |
| Ice collecting capacity | kg/B | ≥20 | ≥40 | ≥60 | ≥100 | ≥300 |
| Cold trap temp. | ℃ | ≤-75 | ≤-75 | ≤-75 | ≤-75 | ≤-75 |
| Cooling mode | - | water cooled | water cooled | water cooled | water cooled | water cooled |
| Defrosting mode | - | water soaked | water soaked | water soaked | water soaked | water soaked |
| Ultimate vacuum | pa | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| Power | kw | 18 | 21 | 24 | 25 | 58 |
| Φ22 vials | pcs | 2460 | 4608 | 6912 | 11648 | 22932 |
| Φ16 vials | pcs | 4788 | 8960 | 13440 | 22540 | 42966 |
| Overall weight | kg | 1500 | 2600 | 2800 | 5000 | 7000 |
| Steaming water consumption | kg/h | 60 | 80 | 100 | 130 | 200 |
| Inpouring water volume | l/min | 60 | 75 | 90 | 120 | 160 |
GZLY-5 Pharmaceutical Medical Vacuum Freeze Drying Machine CIP SIP
Case

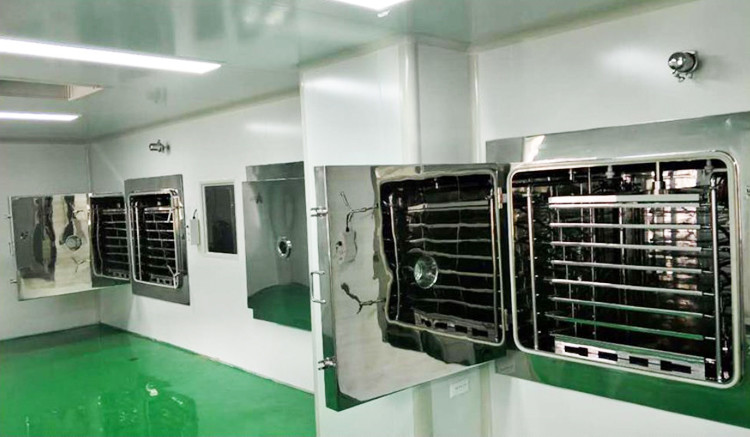

LGJ-200F Full Stainless Steel Vaccum Freeze Dryer With GMP
Verification is used in cleanroom.
LGJ-20F LGJ-100F Silicon Oil Heating Vaccum Freeze Dryer / Freeze
Drying Machine is used for In vitro diagnostic reagents
freeze-drying.
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least
1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will
prepare the machines and goods. Usually could ready within 10
working day, when dispatch, will inform client and send the
documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and
video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside
the machine?
Bonnin’s engineer could provide the solutions by email and video.
In warranty period, we can send spare parts for free and life-time
technical support for spare supply.
