Laboratory FTIR Spectrometer Fourier Transform Infrared
Spectrophotometer FTIR Equipment

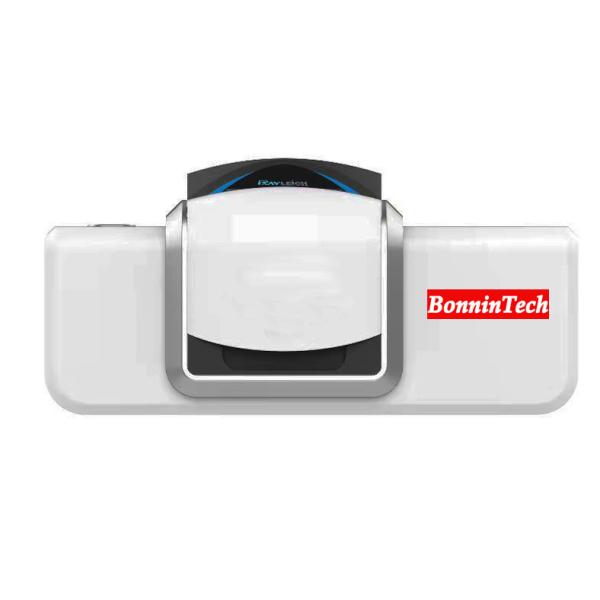

FTIR-530 Fourier Transform Infrared Spectrometer Based on more than
thirty years experience in FTIR R&D and manufacturing, we has
launched a new type FTIR Spectrometer FTIR-530 with fully
independent intellectual property rights. Adhering to consistent
excellent quality and superior performance, the new model obtains
the best balance between intelligence and convenient operation,
advance performance and low operation and maintenance cost. It is a
good choice for basic science research analysis, production quality
control,testing and detection in various fields.
u High sensitivity and stability
u Intelligent real-time monitoring of instrument status
u Multiple communication options
u Flexible and convenient testing
u Powerful software workstation
Features
Laboratory FTIR Spectrometer Fourier Transform Infrared
Spectrophotometer FTIR Equipment
l High sensitivity optical system: cube-corner Michelson
interferometer combined with patented fixing mirror alignment
technology(fixing mirror alignment assembly),to ensure long term
stability, without the need of dynamic alignment which needs extra
complicated electronic circuits. Reflecting mirrors are coated with
gold to provide the maximum light throughput and ensure the
detection sensitivity.
l High stability modular partition design: compact structure
modular design with layout on cast aluminum base and overall
balance of mechanical robustness and partition heat dissipation,
offering higher ability of deformation resistance and less
sensitive to vibrations and thermal variations, greatly improves
the mechanical stability and long term working stability of the
instrument.
l Intelligent multi-sealed moisture-proof design: multiple sealed
interferometer, large-capacity desiccant cartridge with visible
window and easy replacement structure, real-time monitoring of
temperature and humidity inside the interferometer, getting rid of
influences of high temperature, high humidity and chemical
corrosions to the optical system in many ways.
l Innovated integration electronic system: high sensitivity
integrated DLATGS detector pre-amplifier technology, dynamic gain
amplification technology, high precision 24-bit A/D conversion
technology, real-time control and data processing technology,
digital filter and network communication technology, ensuring high
quality real-time data collection and high-speed transmission.
l Good anti-electromagnetic interference capability: The electronic
system is designed to meet CE certification and electromagnetic
compatibility requirements, minimizing electromagnetic radiation in
design and technology,in line with green instrument designing
concept.
l High intensity IR source assembly: High intensity, long lifetime
IR source module, with the highest energy distributed in
fingerprint region, adopts a reflex sphere design to obtain even
and stable IR radiation. External isolated IR source module and
large space heat dissipation chamber design provide higher thermal
stability and stable optical interference.
l The sampling compartment, reserving accessory mounting holes on
the base plate, is wide enough for various accessories such as
Defused/Specular Reflection, ATR, Liquid cell, Gas cell, and IR
microscope etc.
Specifications:
| Interferometer | Cube-corner Michelson interferometer | |
| Beam splitter | Multilayer Ge coated KBr | |
| Detector | Room temperature DLATGS module (standard) | Temperature stabilized, high sensitivity DLATGS module (optional) |
| IR Source | High intensity, long lifetime, air-cooled IR source | |
| Wavenumber Range | 7800cm-1~350cm-1 | |
| Resolution | 0.85 cm-1 | |
| Signal to noise ratio | Better than 20,000:1 (RMS value, at 2100cm-1 ~ 2000cm-1 or 2100cm-1
~ 2200cm-1, resolution: 4cm-1, detector: DLATGS, 1 minute data
collection) | |
| Wavenumber Accuracy | ±0.01 cm-1 | |
| Scanning Speed | Microprocessor control, different scanning speed selectable. | |
| Software | Main FTOS Suite software workstation, compatible to all version
Windows OS | Various specialized functional software modules (optional) |
| Communication | Ethernet interface (standard) | WIFI wireless communication (optional) |
| Data Output | Standard data format, report generation and output | |
| Status Diagnosis | Power on self check, real-time temperature and humidity monitoring
and reminders | |
| Certification | | F-D-A 21 CFR Part11 compliance,IQ/OQ/PQ(Optional) |
| Environment Conditions | Temperature: 10℃~30℃, humidity: less than 70% | |
| Power Supply | AC220V±22V,50Hz±1Hz | AC110V(optional) |
| Dimensions & Weight | 520 x 435 x 255mm, 24kg | |
| Accessories | Transmission sample holder (Standard) | Optional accessories such as gas cell, liquid cell,
Defused/Specular Reflection, single/multi reflection ATR, etc. |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least
1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will
prepare the machines and goods. Usually could ready within 10
working day, when dispatch, will inform client and send the
documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and
video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside
the machine?
Bonnin’s engineer could provide the solutions by email and video.
In warranty period, we can send spare parts for free and life-time
technical support for spare supply.
