Minus 40 Degree Ultra Low Temperature Freezer, Ultra Low
Temperature -60C Container Deep Freezer
Applications:
-86℃ medical low-temperature refrigerator freezer (vertical
ultra-low temperature refrigerator freezer, horizontal ultra-low
temperature refrigerator freezer), for long term storage of various
biological product,including viruses, germs. erythrocytes,
leucocytes and cutis. Applications can be found in blood banks,
hospitals, epidemic prevention services, and research institutes,
biochemistry and molecular biology laboratories. It's mainly used
for the preservation of reagents, biological samples or medicines.
Ultra-low temperature refrigerators have a wide range of
applications, including biological research, metal processing,
hospital pharmaceutical companies, epidemic prevention systems, and
military industries.
Features:
Microprocessor-controlled system designed for controlled rage of
-40℃ to -86℃ for cabinet space with 1℃ increment
Settable high temperature and low temperature alarms.
Automatic clean-filter alarm and sensor error alert.
Adjustable storage shelf height
Optional temperature recorder. storage racks and storage box.
Model Specification:

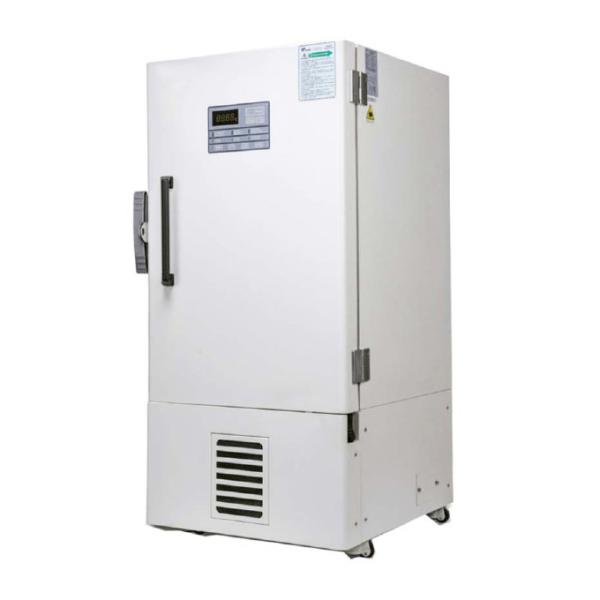

-86℃ medical low-temperature refrigerator vertical type
| Model | BNF-86V58 | BNF-86V188E | BNF-86V408E | BNF-86V588E | BNF-86V838E |
Performance | Capacity | 58L | 188L | 408L | 588L | 838L |
| Temperature range(℃) | -40~-86℃ |
| Ambient temperature(℃) | 10~32℃ |
| Control System | Controller | Microprocessor |
| Display | Digital display |
Refrigeration System | Compressor | 1 | 2 |
| Refrigerant | Mixed-gas |
| Cooling Type | Direct cooling |
| Defrost Type | Manual |
Electrical Data | Power Supply (V/Hz) | 220~240/50~60; 115/60 |
| Rated Power (W) | 442W | 660W | 890W | 1500W | 1700W |
| Electrical Current (A) | 2.67A | 4.3A | 4.6A | 9.1A | 9.8A |
| Power Consumption (kwh/24h) | 5.6 | 8.2 | 12 | 16.5 | 18.8 |
| Dimensions | NT./GT.(kg) | 115/155 | 174/224 | 234/291 | 290/360 | 344/430 |
| Exterior size(W*D*H)(mm) | 635*757*1212 | 850*930*1595 | 890*930*1945 | 880*1090*1995 | 1175*1075*1990 |
| Interior size(W*D*H)(mm) | 330*453*410 | 465*465*830 | 606*575*1180 | 606*738*1310 | 894*718*1310 |
Alarm | High/low temperature | Y | Y | Y | Y | Y |
| Power failure | Y | Y | Y | Y | Y |
| Abnormal voltage | Y | Y | Y | Y | Y |
| Sensor error | Y | Y | Y | Y | Y |
| Filter screen check | Y | Y | Y | Y | Y |
| Thermostat failure | Y | Y | Y | Y | Y |
| Low battery | Y | Y | Y | Y | Y |
| Condenser clean | Y | Y | Y | Y | Y |
| High ambient temperature | Y | Y | Y | Y | Y |
| Door ajar | Y | Y | Y | Y | Y |
Accessories | Castor | Y | Y | Y | Y | Y |
| Inside door | 1 | 2 | 2 | 2 | 2 |
| Test hole QTY/diameter | 1/25mm |
| USB port | Y | Y | Y | Y | Y |
| Remote alarm port | Y | Y | Y | Y | Y |
-86℃ medical low-temperature refrigerator horizontal type
| Model | BNF-86H105 | BNF-86H485 |
Performance | Capacity | 105L | 485L |
| Temperature Range | -40~-86℃ | -40~-86℃ |
| Ambient Temperature | +10~+32℃ | +10~+32℃ |
Control System | Controller | Microprocessor | Microprocessor |
| Display | Digital Display | Digital Display |
Refrigeration System | Compressor | 1 | 1 |
| Refrigerant | Mixed | Mixed |
| Cooling Type | Direct Cooling | Direct Cooling |
| Defrost Type | Manual | Manual |
| Alarm | High/low Temperature | Y | Y |
| Sensor Error | Y | Y |
| Controller Error | Y | Y |
Electrical Data | Power Supply (V/Hz) | 187~242/50~60; 115/60 | 187~242/50~60; 115/60 |
| Rated Power (W) | 455 | 675 |
| Electrical Current (A) | 2.2 | 3.57 |
| Power Consumption (kwh/24h) | 3.8 | 11.5 |
Dimensions | Interior Size (W*D*H) | 480*380*665mm | 1455.5*525.2*674mm |
| Exterior Size (W*D*H) | 680*580*935mm | 1695*840*962mm |
| N.t./G.t. | 42kg/45kg | 96kg/120kg |
| Accessories | Caster | Y | Y |
| Test Hole/Diameter | 1/25mm | 1/25mm |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least
1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will
prepare the machines and goods. Usually could ready within 10
working day, when dispatch, will inform client and send the
documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and
video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside
the machine?
Bonnin’s engineer could provide the solutions by email and video.
In warranty period, we can send spare parts for free and life-time
technical support for spare supply.
