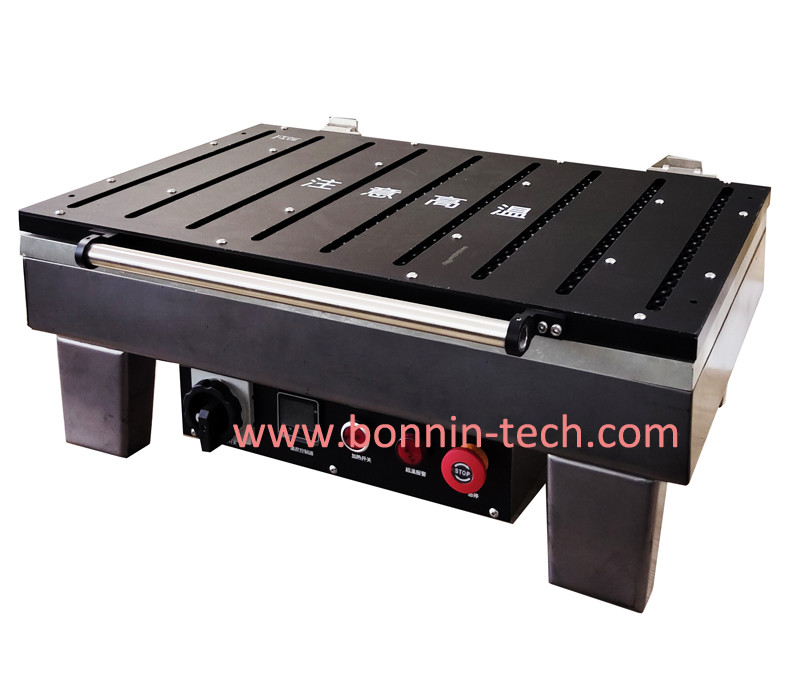

BN-DZ01 Flat Type Paper Sample Quick Dryer /Vacuum Paper Speed Dryer

BN-DZ01 Flat Type Paper Sample Quick Dryer is a special experimental equipment used in the papermaking laboratory to quickly dry the formed paper samples. The upper cover and heating plate of the machine are made of metal aluminum with high thermal conductivity, and the 22mm thick working panel is evenly baked by heat radiation. The hot steam is discharged from the mesh through the upper cover felt. The temperature control system adopts intelligent PID to control heating, with high precision of measurement and control and constant temperature. The use temperature is adjustable, the maximum temperature can reach 150 ℃, and the thickness of the drying pattern can be adjusted from 0-15mm.

Technical parameters:

• Drying temperature range: adjustable within the range of normal temperature to 150°C, and the safety protection temperature is 180°C.
• Drying size: the sample size can be achieved within the range of 660*418 (6 groups of R200 can be dried at the same time)
• Heating method: flat-vertical conduction flat heater, electric heating
• Drying board thickness: 21mm
• The pressure applied to the sample: Level 1: 10kg, Level 2 17kg, Level 3 24kg
• Press plate size: 660*418*55mm
• Wool felt area: 624*383mm
• Heating power: 1.6KW/220V
• Net size: 660mm×418mm×270mm

FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.

Bonnin Instrument Technology Ltd (also named of Wuhan Bonnin Technology Ltd). is an ISO9001 certified company since 2005, manufacturing physical property testing instruments for pulp, paper, packaging, textile, fabrics, nonwoven, and plastic, rubber, ink industries, etc. Also have scientific instruments, pharmaceutical water analyzer, life science, incubator, spectrometer and others.

Bonnin's Instruments are used in more than 10,000 testing laboratories, quality control departments, commodities inspection and scientific research institutes and universities throughout China.

Bonnin professional team is seeking to the highest quality, competitive price and fastest delivery of the equipments, for 100% customer satisfaction.

Bonnin team also are looking for overseas partnership, to distribute our equipments widely!
