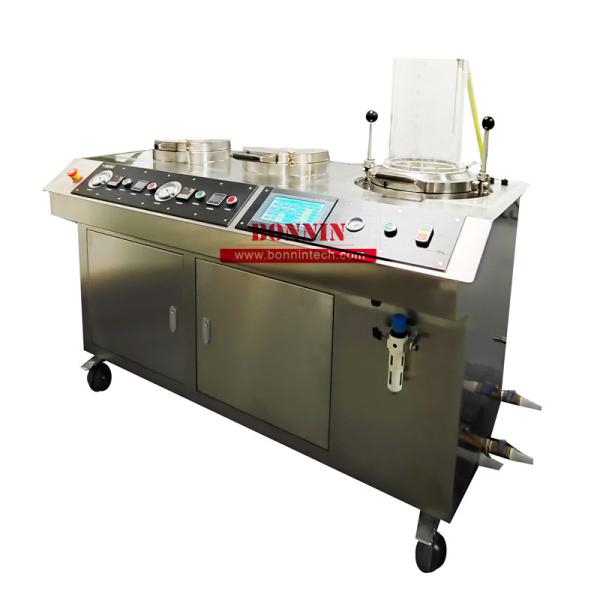

Automatic Manual TAPPI Type Laboratory Standardized Rapid Kothen Pulp Sheet Former Automatic Model

The water cycle pulp sheet former is a paper sheet forming machine used by the papermaking laboratory to make paper pulp. This machine is fast, stable and reliable, with small size, convenient for disassembly and operation, white water circulation, electric water supply, aerodynamic bubble homogenizer and manual homogenization. It can quickly discharge water and can be vacuum-assisted. Stainless steel cabinet.

Standards:
GB/T 24324-2009, QB/T3703-1999, ISO 5269/2 & ISO 5269/3, 5269/2, NBR 14380/99, TAPPI T-205, DIN 54358.

Technical datas:

Applications: 0 ~ 1000CSF
Pulp capacity: 11000ml
Sample diameter: round, Φ less than 200mm, square and other sizes to be customized.
Molding material: special aluminum composite metal materials
Molding weight range: the minimum molding weight 20g, the maximum thickness can be achieved about 20mm sheet material
Body weight and thickness according to the type of fiber may be. Evenness index: uniformity of 40 to 110, depending on the specific circumstances of different fiber types and beating degrees
Mesh selection: 80/100/120/200/300/400/500 comes standard with one of the mesh, according to different fiber characteristics
High pressure dewatering control system: equipped with high pressure anti-suction high vacuum system
Forming mesh diameter: Φ257mm
Net fixture material: 304 # stainless steel
Discharge network material: pure bronze
Discharge efficiency: 0.7 / 4h / cm2
Three layers of filter layer: 314-397-363cm2
Drain tank: 20Cir
Discharge pore size: Φ3mm
Pulp fluidity: 18mmH
Three levels of water: 20-160-710mm

FAQ 1. Are you a factory or trading company?
We are a factory.

FAQ 2. Can you supply OEM?
OEM is available.

FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least 1 box.

FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will prepare the machines and goods. Usually could ready within 10 working day, when dispatch, will inform client and send the documents for client making import customs clearance.

FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.

FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and video for installation and operation.

FAQ 7. How can your engineer replace parts if they are not beside the machine?
Bonnin’s engineer could provide the solutions by email and video. In warranty period, we can send spare parts for free and life-time technical support for spare supply.
