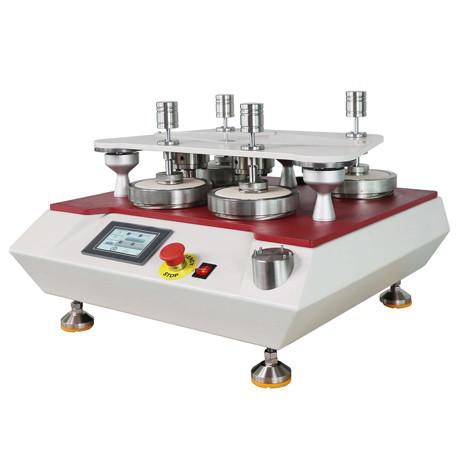

YG401E Martindale Abrasion and Pilling Tester is used for abrasion resistance and pilling test of woven fabrics,
knitted fabrics, pile fabrics, coated fabrics and non-woven
fabrics.
Related standards
GB / T21196-2007, GB / T4802.2 GB / T19089 ISO1670-2 ISO12947-1
ASTM D4966 ASTMD 497 IWS TM196,112 JIS L1096 DIN53863 DIN53865
BS3424 BS5690 BS EN388 BS EN530 M & S and so on
Instrument features
1,Two kinds of Lissajous movement trajectory
60×60mm 24×24mm
2,Weight and key components made of 304 stainless steel, good
looks, durable
3,The pressure plate made of special aluminum alloy, to ensure
long-term use without deformation
4,Needle roller bearing type transmission, to ensure that the
workbench test error-free
5,Can be preset multiple sets of operating procedures, a variety of
counting methods (incremental and decreasing)
6,Every station independent cumulative count, can be locked at any
single station for easy test management
7,Color touch screen control, English menu interface
Technical datas:
| Model | YG401E-4 | YG401E-6 | YG401E-8 | YG401E-9/YG401G |
| Control mode | Color touch screen control |
| Counting range | 0 ~ 999999 times (can be saved) |
Pressure weight a Holder b Cloth sample weight c Furniture parts sample weight d Stainless steel butterfly |
200 +/-1g 395 +/-2g 594 +/-2g 260 +/-1g |
Rubbing diameter a Rubbing head b Rubbing head |
A type 200g (1.96N) friction head (9KPa) ¢ 28.8 mm B type 155g (1.52N) friction head (12KPa) ¢ 90mm |
| Friction relative speed | 50±2r/min |
| Dimensions( L x W x H cm) | 61x 59 x 42 | 85 x 65 x 42 | 85 x 71 x 42 | 85 x 80 x 42 |
| Weight | 90KG | 125KG | 140KG | 150KG |
| Power | AC220V 50Hz 500W |
FAQ 1. Are you a factory or trading company?
We are a factory.
FAQ 2. Can you supply OEM?
OEM is available.
FAQ 3. What's the MOQ ?
(1). MOQ is 1 piece. The disposable supplies order usually at least
1 box.
FAQ 4. How about the order processing and lead time?
After order confirmation and receive the advance payment, we will
prepare the machines and goods. Usually could ready within 10
working day, when dispatch, will inform client and send the
documents for client making import customs clearance.
FAQ 5. What quality will be ensured?
100% new and quality inspection before delivery from factory.
Stable export box for good package.
FAQ 6. Can you guide the working?
The machine will deliver with English display, English manual and
video for installation and operation.
FAQ 7. How can your engineer replace parts if they are not beside
the machine?
Bonnin’s engineer could provide the solutions by email and video.
In warranty period, we can send spare parts for free and life-time
technical support for spare supply.
